Flexible Rod Conveyor Belt - Chain Link or U-shaped Link Types

Similar to the balanced weave conveyor belt, the flexible rod belts are also formed by the spiral wires and cross rod. The cross rod is fastened to the chain link or U-shape links to form a firm structure. Commonly the cross rod of flexible rod belts is thicker than the spiral wires.

The flexible rod belt has excellent conveying performance no matter on the straight or spiral conveying equipment, so it is popular in the food industries, including cooling, cooling or freezing products.

Types of flexible rod belts
The main structure of flexible rod belt is spiral wires, cross rods and links on each side. The links can be chain links or U-shape links for your choice.

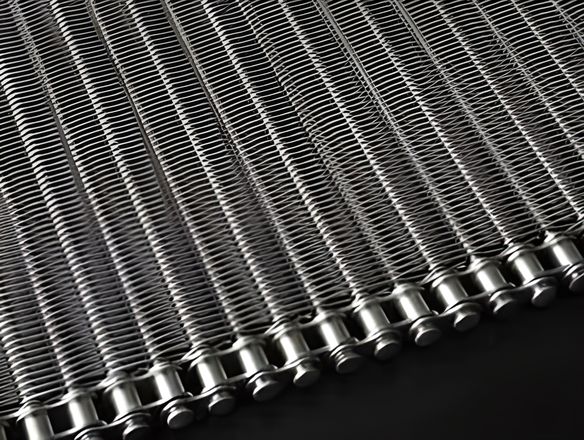

A flexible rod conveyor belt with chain link edge.
FRCB-01 chain link edge.

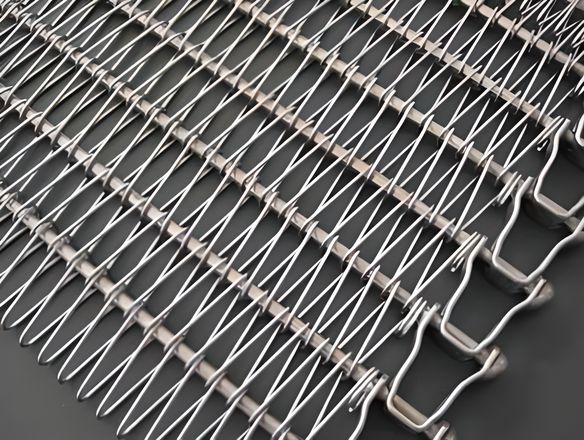

A flexible rod conveyor belt with U-shaped links edge.
FRCB-02 U-shaped link edge.

U-shaped edge has different types, which can be standard, heavy duty type and U-shaped link edge with two reinforced rod. They are all solid and durable. You can choose them according to your applications and products you want to convey.

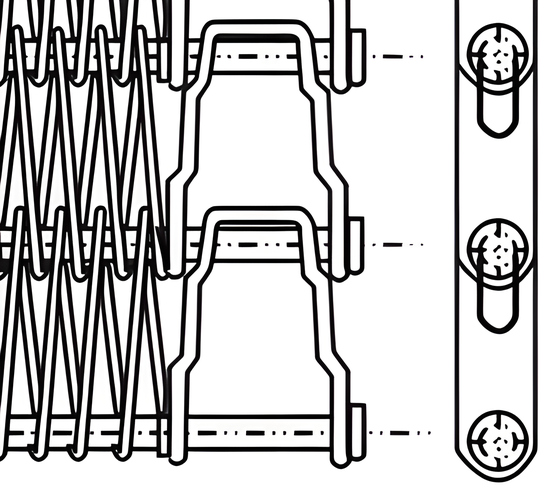

A drawing of flexible rod conveyor belt with standard U-shaped link edge.
FRCB-03 standard U-shaped link edge.

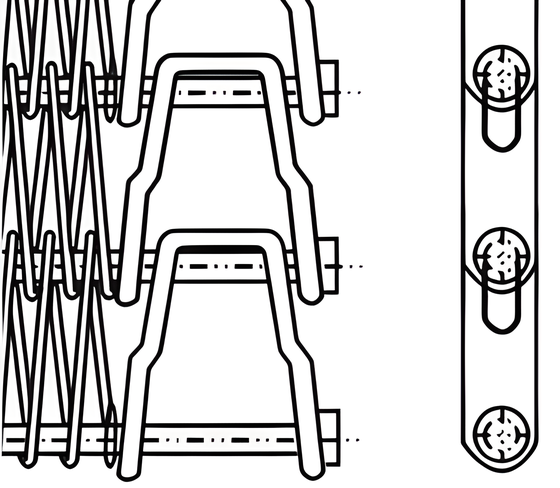

A drawing of flexible rod conveyor belt with reinforced U-shaped link edge.
FRCB-04 heavy duty U-shaped link edge.

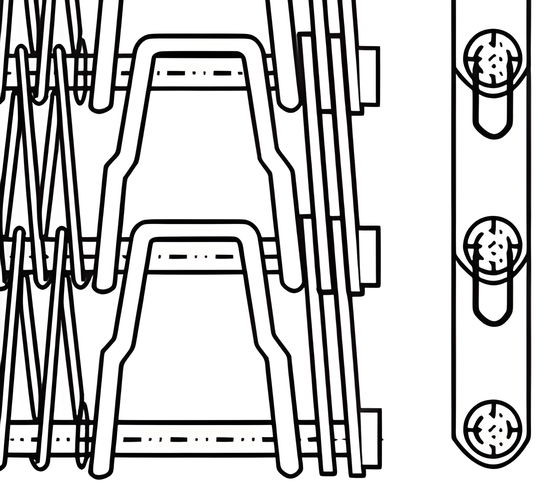

A drawing of flexible rod conveyor belt with heavy duty U-shaped and two reinforced plate edge.
FRCB-05 heavy duty link edge with two reinforced plate.

Specifications of flexible rod conveyor belt

  • Material: stainless steel, high carbon steel, galvanized steel and other materials are available.
  • Edge type: chain link edge or U-shaped edge.
  • Wire diameter: 2mm - 3mm.
  • Cross rod diameter: commonly is 5mm. Other specs can be customized.
Specification of U-shape link edge flexible rod conveyor belt
Item Types Pitch Belt width Wire diameter Cross rod diameter U-shape link height U-shaped link width
BFRCB-01 Standard U-shape link 3/4" 2.2m 2mm 5mm 11mm 28mm
BFRCB-02 Standard U-shape link 1" 1.7m - 2.2m 2mm 5mm 11mm 29mm
BRCB-03 Heavy duty U-shape link 1" 2.2m 3mm 5mm 11mm 36mm
BFRCB-04 Heavy duty U-shape link 1" 1.7m - 2.2m 3mm 5mm 11mm 41mm
BFRCB-05 Heavy duty with double reinforced plate 1" 1.7m - 2.2m 3mm 5mm 11mm 41mm

Features of flexible rod conveyor belt

  • Rigid structure. High quality material and solid structure make the conveyor belt be a rigid products for using.
  • High temperature resistance. The stainless steel material can maintain the perfect performance even in the extremely high or low temperature applications.
  • Corrosion and rust resistance. The stainless steel material and galvanized steel have excellent chemical stability, which are corrosion and rust resistance.
  • Durable and long service life. The high quality material and rigid structure can ensure the long lifespan of the flexible rod conveyor belt.
  • Easy to install and replace. The flexible rod conveyor belt is lightweight and easy to install and replace.
  • U-shaped links can be added on the center of conveyor belt. To decrease turning radii and improve conveying efficiency, the U-shaped conveyor belt are added onto the center of the conveyor belt.
  • Side guards are available. Side guards can be added on both side of the conveyor belt to prevent products from spillage.
A curved flexible rod on the red background with U-shaped links on the both side and center of the belts.
U-shaped links can be added on the center of the belts to decrease turning radii.
A flexible rod conveyor belt with side guards on the blue background.
Side guards are added onto the conveyor belts to prevent products from spillage.
